Description
SERVO 50W
Main function
AC servo motor
Product series / family name
MELSERVO J2S series
Sub-range name
HC-KF series
Functions
AC brushless rotary servo motor
Design
keyed shaft
built-in absolute feedback encod. (17-bit)
low inertia / small power capacity
fan cooling
built-in absolute feedback encod. (17-bit)
low inertia / small power capacity
fan cooling
Supply voltage (AC)
200Vac class
Rated current
2.3A
Rated active power (kW)
400W / 0.4kW
Rotational speed
3000rpm
4500rpm (maximum)
4500rpm (maximum)
Torque
1.3Nm nominal
Maximum torque
3.8Nm
Moment of inertia
0.0000460kg.m2 (0.46kg.cm2)
Mounting mode
60x60mm flange mounting
Resolution
17-bit (equivalent to 131072ppr) feedback
Degree of protection
IP55

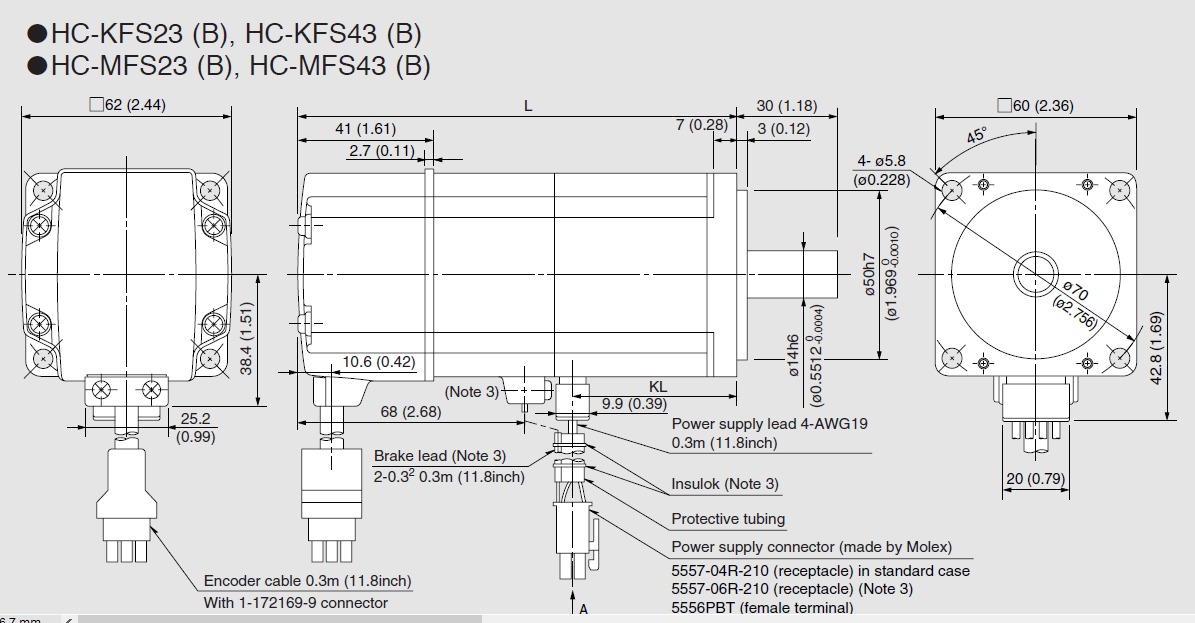

Dimensions
H72.8mm x W62mm x D154.5mm
Net Height (mm)
72.8 mm
Net Width (mm)
62 mm
Net Depth (mm)
154.5 mm
Ambient air temperature for operation
0…+40 ?C
Ambient air temperature for storage
-15?C…+70 ?C
Maximum current
6.9 A
Order code / Manufacturer SKU
HC-KFS43K
Manufacturer product status
Discontinued
